DISPOSABLE CEILING MODULES

Disposable HPEA Filter Ceiling Modules
Advantage
- The all-aluminum frame and upper cover prevent corrosion.
- Through the standard diffuser, the indoor air flows smoothly.
- The air inlet hose can prevent air from escaping.
- Use special resin of without phosphorus to seal the media and frame absolutely.
- There is no need to consider the surface separation material and wind speed obstacles.
- Super thin, light-weighted easy and time saving installation.
Use
- Installed on the T-BAR frame on the ceiling, it can be directly combined with the hose of the air duct.
- It is a combination of filter and box, suitable for clean room of ceiling system and other kinds of clean places.
Quality
All products manufactured in clean room are 100% qualified through scanning test as guarantee of top quality
Disposable HPEA Filter Ceiling Modules
Could match the T-BAR and Gasket style Ceiling system, it depends on the cluantity, the spead of air circle and interior design offer the grade of 1 to 100,000 of high cleansing air to clean room or other cleansing field.
Gasket Seal System
With special metalized header design on the leeward edge the gasket matches the header, makes the box and Filter seal more closer aperture avertable.

--- | A | B |
本體材質 Casing Material |
鋁板(陽極處理) Aluminum(Extruded Anodized) |
聚丙烯PP框 Polypropylene |
保溫方式 Insulation |
12mmt內外保溫或外保溫 12mmt Internal or Out Insulation |
|
入風管尺寸 |
Ø 10",12",14",16" |
|
保溫材 Material of Insulation |
PE |

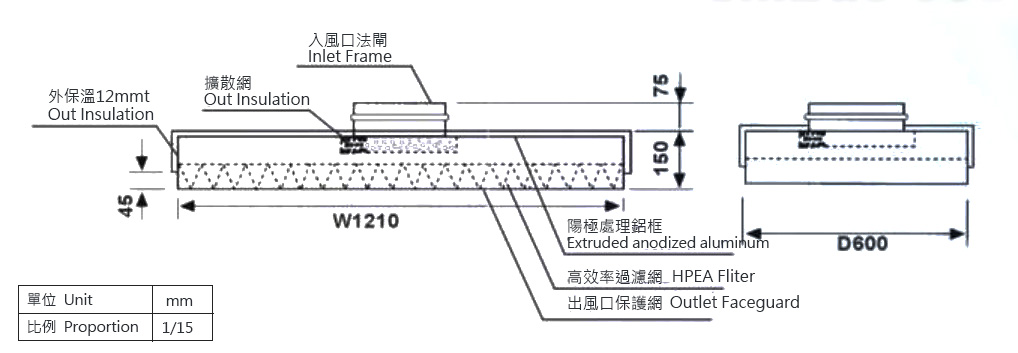

外型尺寸 Actual Size |
重量 Weight |
定格風量 Air Flow Rate |
600 x 1210 x 150 mm(DxWxH) | 21kg | 17.5 CMM(620CFM) |
570 x 1170 x 150 mm(DxWxH) | 19kg | |
600 x 600 x 150 mm(DxWxH) | 12kg | 8.4 CMM(300CFM) |
570 x 570 x 150 mm(DxWxH) | 10kg |
效率 Efficiency |
Ø 0.3µm 99.99%以上、0.1µm~0.2µm 99.9995%以上 Ø 0.3µm more than 99.99%, 0.1µm~0.2µm more than 99.9995% |
|

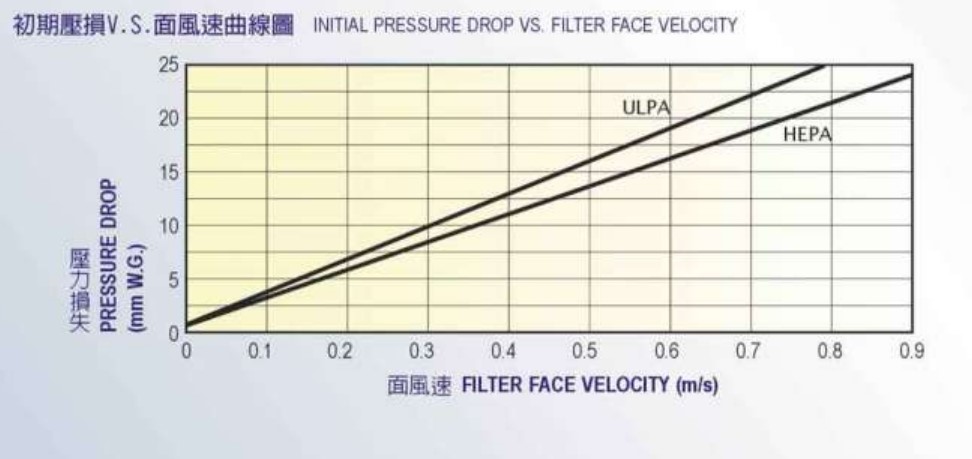

壓損 Pressure Drop |
HPEA 初期 12.5mm W.G.以下 ULPA14.5mm W.G.以下 HPEA Intial:Below 12.5mm W.G. ULPA:Below 14.5mm W.G. |
|
框架 Frame |
鋁板(陽極處理) Aluminum(Extruded Anodized) |
|
濾材 Media |
玻璃纖維紙 Fiberglass Paper |
|
保護網 Faceguard |
鋁板(陽極處理) Aluminum (Extruded Anodized) |
|
接著劑 Bond |
特殊樹脂 Special Resin |
